3838 Smd Led RGB

Product name

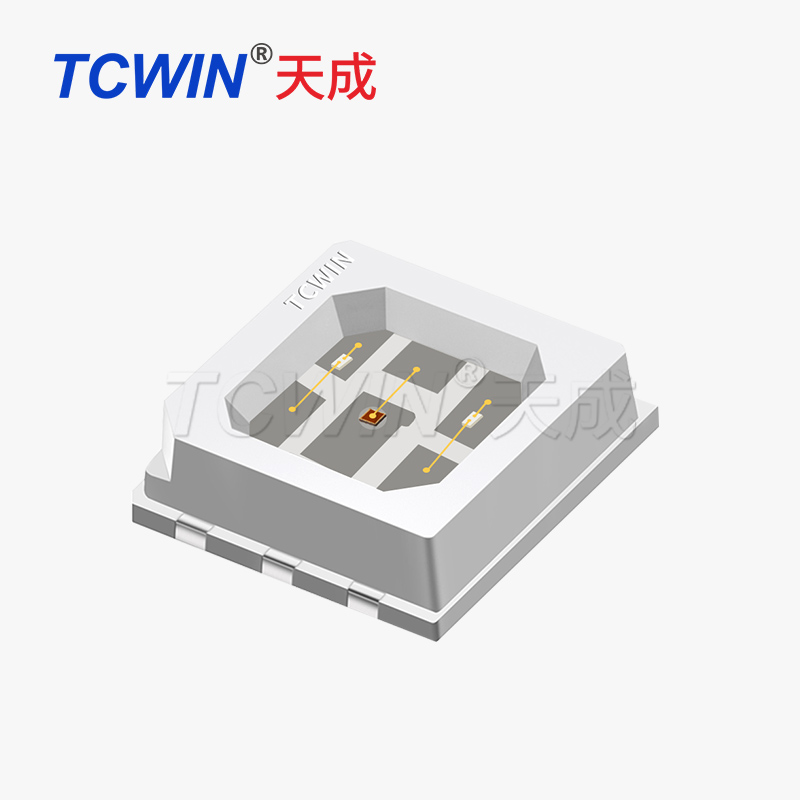

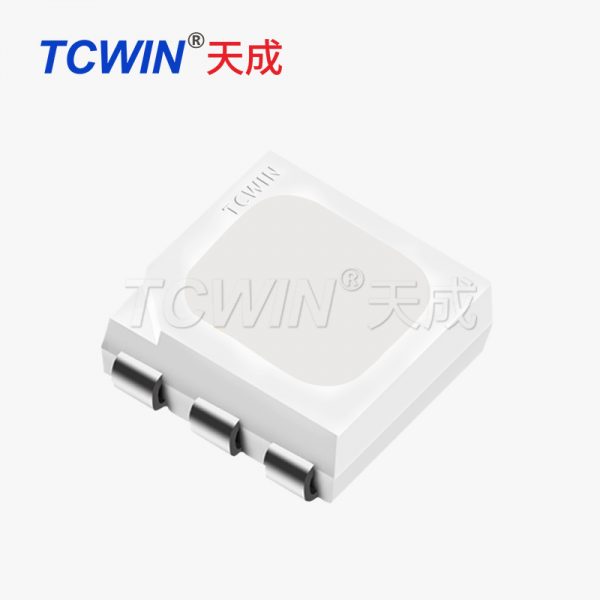

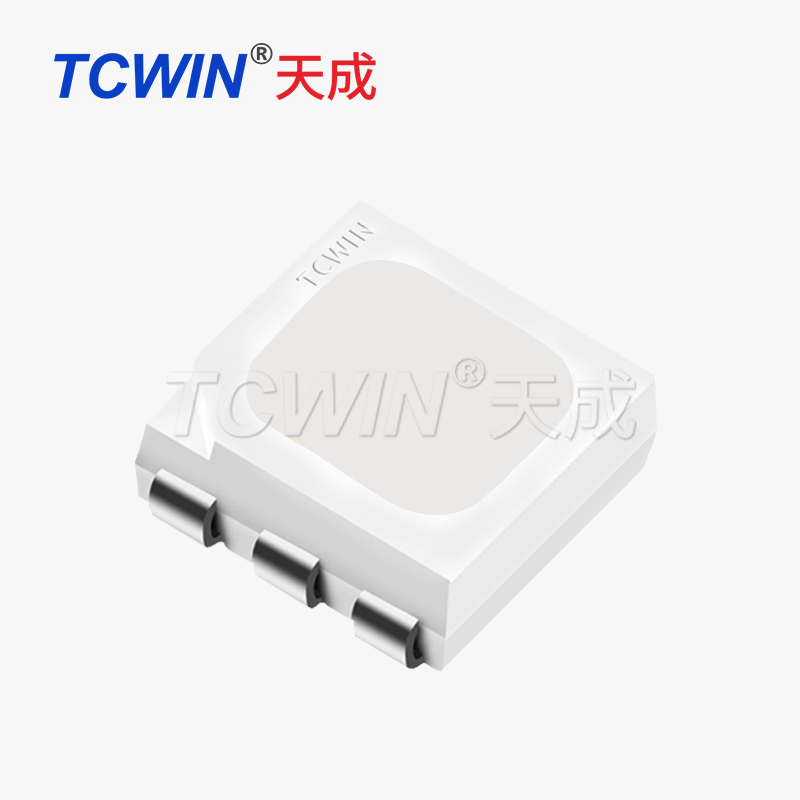

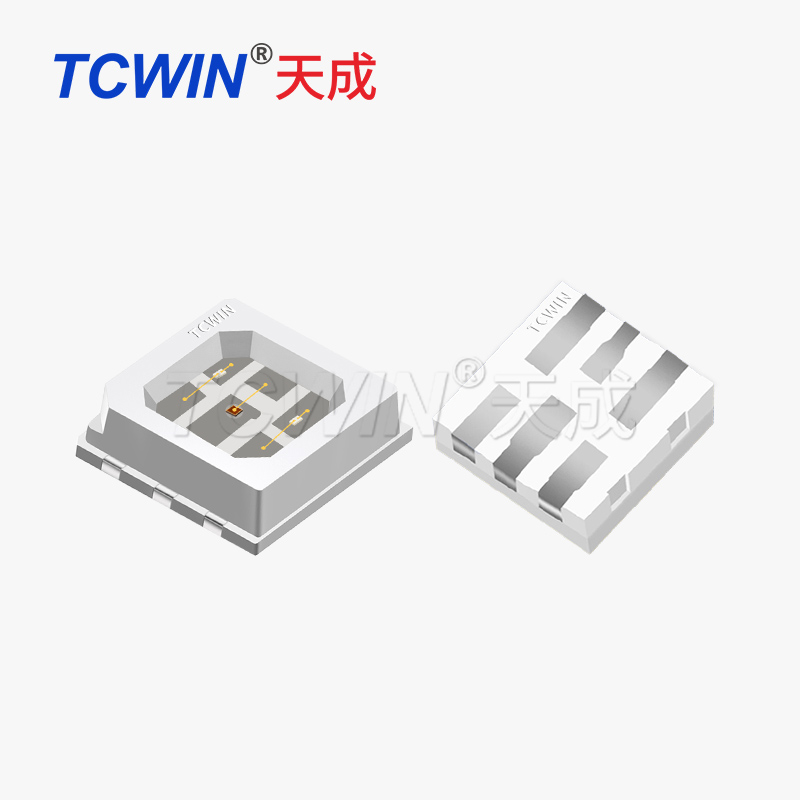

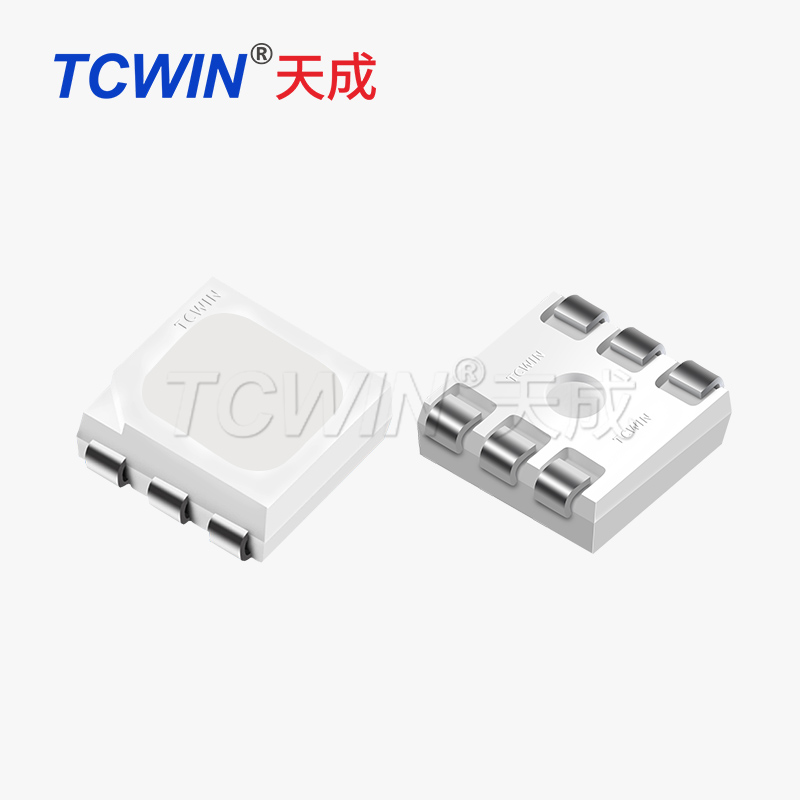

3838 RGB smd led with Sanan chip package size: 3.5*3.5*1.3mm
Product feature
Three RGB chip package, single chip 20ma work. Different Pin positions can be customized according to requirements.
Application
LED line light, LED fence tube, LED point light, LED module, LED strip, LED pixel screen.
Certifications
UN EN 62471, SGS, ROHS, Moisture – resistant grade MSL2a

Type:
SMD LED
Warranty(Year):
3-YEAR
Lighting solutions service:
Lighting and circuitry design, auto CAD layout, Project Installation, LED Strip
Chip Material:
InGaN
Emitting Color:
RGB
Luminous Intensity:
R:600-800MCD G:1800-2200MCD B:500-700MCD
Luminous Flux(lm):
RGB
Optical Attenuation(%):
2
Power:
0.2w
Power Dissipation:
2
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
RGB
Operating Temperature(℃):
-40 – 150
Storage Temperature(℃):
5 – 30
Place of Origin:
Guangdong, China
Brand Name:
TCWIN
Certification:
CE, RoHS
Product name:
3838 SMD LED RGB
Keywords:
SMD LED
package Size:
3.5*3.5*1.3mm
Chip Brand:
Sanan Chip
Emitting Colors:
RGB Red Green Blue
Lifespan:
50000H-100000H
Voltage:
R:2.0-2.2V / G:3.0-3.2V / B:3.0-3.2V
Current:
60ma
Application:
line light, fence tube, point light, LED module, LED strip
