Type:
SMD LED
Warranty(Year):
3-YEAR
Lighting solutions service:
Lighting and circuitry design, auto CAD layout, Project Installation, LED Strip
Chip Material:
InGaN
Emitting Color:
Warm White
Luminous Intensity:
R:600-800MCD G:1800-2200MCD B:500-700MCD
Luminous Flux(lm):
RGB
Optical Attenuation(%):
2
Power:
0.2w
Power Dissipation:
2
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
RGB
Operating Temperature(℃):
-40 – 150
Storage Temperature(℃):
5 – 30
Place of Origin:
Guangdong, China
Brand Name:
TCWIN
Certification:
CE, RoHS
Product name:
3838 bi-color
Keywords:
white SMD LED
package Size:
4.0*3.8*1.1mm
Chip Brand:
Sanan Chip
Emitting Colors:
warm white & pure white
Lifespan:
50000H-100000H
Voltage:
2.8V~3.2V
Current:
60ma
Application:
line light, fence tube, point light, LED module, LED strip

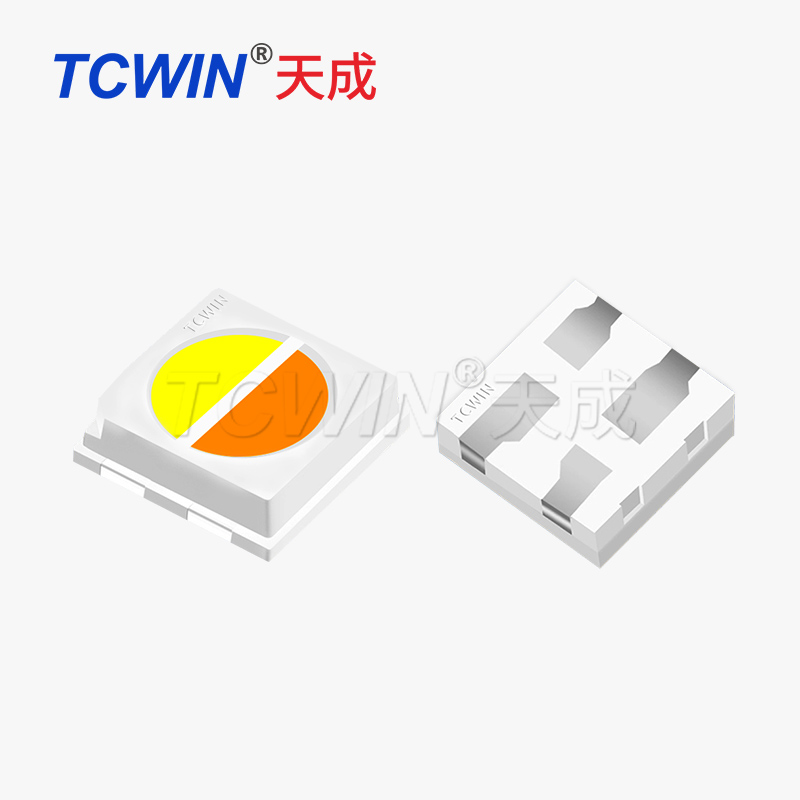

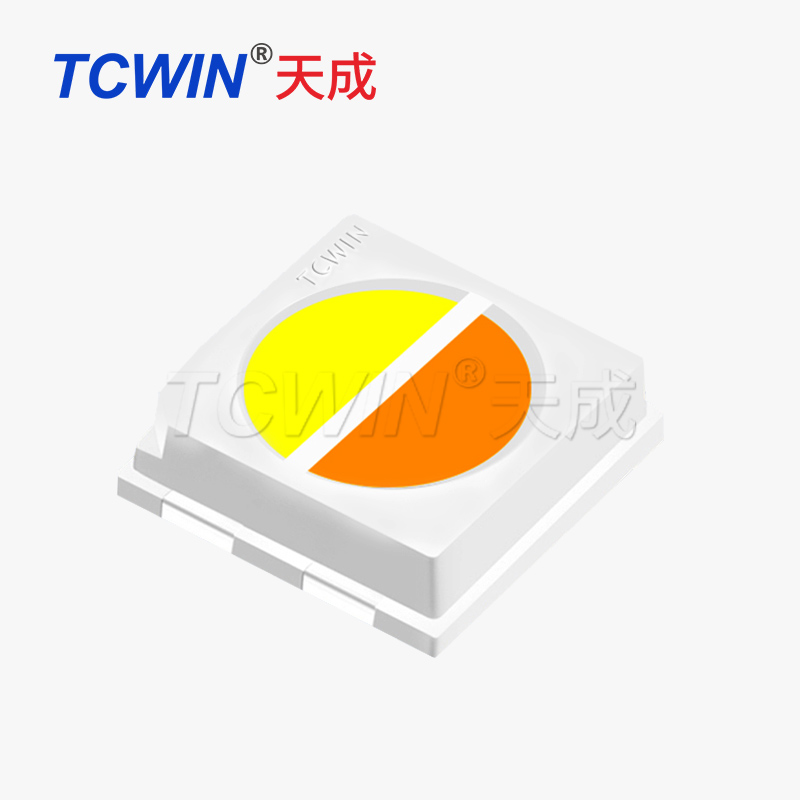

3838 Smd Led Double Color
Product name
3838 dual white SMD LED
package size: 4.0*3.8*1.1mm
Product feature
high strength bracket
Bending resistance
Good moisture Resistance
Dead-lamp prevention
CCT:
W1: 2800~3200k
W2: 6000~6500K
lumen:
W1: 22-24lm
W2:22-24lm
Application
LED line light, LED fence tube, LED point light, LED module, LED strip, LED pixel screen.
Certifications
UN EN 62471, SGS, ROHS, Moisture – resistant grade MSL2a
